Global Navigation Satellite System (GNSS)

is the standard generic term for all navigation satellites systems like GPS, GLONASS, GALILEO, BeiDou, QZSS, NAVIC.

Global Navigation Satellite System (GNSS)

is the standard generic term for all navigation satellites systems like GPS, GLONASS, GALILEO, BeiDou, QZSS, NAVIC.

About U-TRAQ

U-TRAQ is powered by ST Microelectronics Chipset on GPS technology which enables it to do tracking at -162dBm with Hot Start at 1 second and Cold Start at 30 second. The position is 2.5m CEP and velocity is 0.1 m/s. It has high performance ARM946 MCU (Upto 196MHz).

U-TRAQ is uniquely positioned for the Tracking navigational applications. Its superior acquisition and tracking capabilities ensure continuous location availability even under poor visibility and weather condition. U-TRAQ supports NMEA message protocol for IRNSS to communicate the location and timing information to the world.

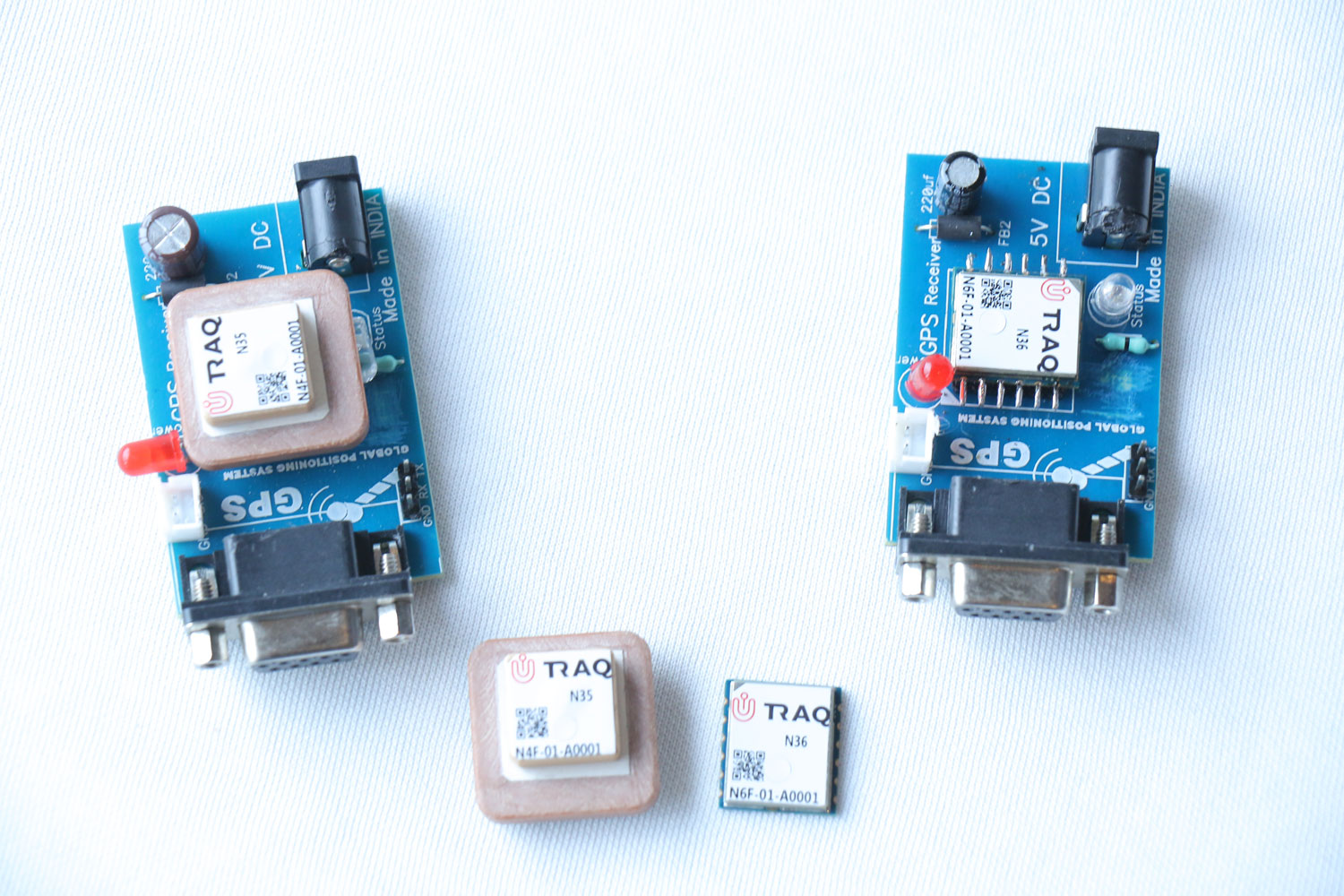

U-TRAQ L100

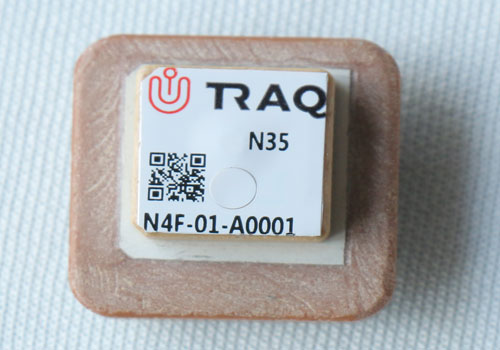

U-TRAQ L100 is an ultra-compact POT (Patch on Top)IRNSS module. This is a standalone L1 + L5 GPS Module in a SMT type base on ST Microelectronics navigation engine. It has tiny package

  • Support EPOTM orbit prediction
  • Support L1 & L5 Bands
  • EGNOS, GAGAN, MSAS)
  • Patch Dimensions : 25x25x11 mm
  • Operation temperature : -40°C ~ +85°C
  • Storage temperature: -45°C ~ +90°C

U-TRAQ L110

U-TRAQ L110 is acompact NavIC module. This is a standalone L1 + L5 GPS Module in a SMT type base on ST Microelectronics navigation engine. It has tiny package

  • Support EPOTM orbit prediction
  • Support L1 & L5 Bands
  • Support DGPS,QZSS, SBAS ranging (WAAS,
  • Patch Dimensions : 25x25x11 mm
  • Operation temperature : -40°C ~ +85°C
  • Storage temperature: -45°C ~ +90°C

NAVIC India (Indian Regional Navigation Satellite system)

The Indian Regional Navigation Satellite System (IRNSS) is an independent, indigenously developed satellite navigation system fully planned, established and controlled by the Indian Space Research Organization (ISRO). The system is designed to provide positioning for India region 1500 km around the Indian mainland as primary service area and the extended service area would lie between the primary service area and area enclosed by the rectangle from Latitude 30 South to 50 North, Longitude 30 East to 130 East and therefore would be a regional satellite based navigation system.

IRNSS Signal Types

Range Coverage

UTRAQ Works on dual frequency
UTRAQ Works on dual frequency

IRNSS receiver is capable of receiving of both L5 and S band frequencies expected to provide better than 5m position solution accuracy and would be interoperable with GPS and GLONASS.
